Données produit

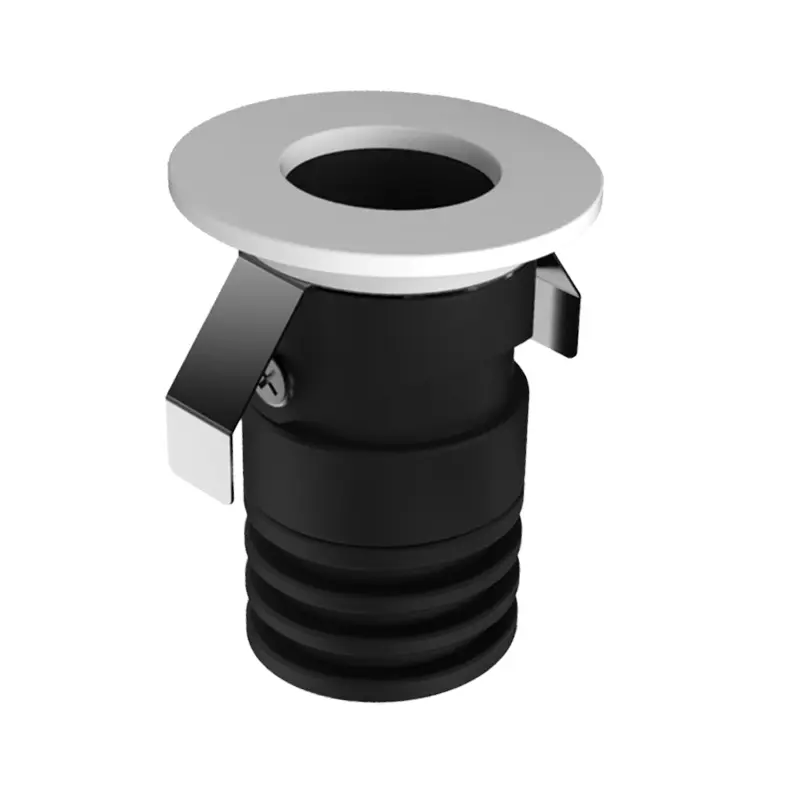

Downlight designed for ceiling recessed installation. Luminaire body built in die- cast aluminium, round face cover, use international top COB OSRAM/ Cree chip, Beam spreads from 10° to 36°.
Selection of dimming drivers including 0- 10V, DALI, Triac and forward phase.
Two warm dim spectra mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 5000K.
Performances du produit
Materials
Luminaire body built in die- cast aluminium with high-grade clear glass + high efficiency reflector, light transmittance> 90%, face right with finish in White/ Black.
Flexible and functional solutions
• Groundbreaking lighting technologies and light management systems for workplace and general lighting.
• Lighting concepts tailored to requirements.
• Lighting solutions that can boost concentration and receptivity.
• Individual consulting.
• Extensive product portfolio for many different production environments.
• Smart light management systems based on LED technology.
• Luminaires with high luminous flux and homogeneous illumination improve production safety.
Experience comfort
• Light as a feelgood factor for guests: harmonious combination of general and accent lighting.
• Multifunctional lighting for different purposes: living, working, sleeping.
• User- friendly: simple to operate, dimmable lighting.
Saving energy, cutting costs
Our services- energy audits, lighting calculations and LED lighting (energy savings of up to 90% over halogen)- deliver fast payback and help meeting energy saving targets
Support in obtaining environmental certification.
Spécification
| Modèle | Pouvoir | IRC | TDC | PF | Actuel | Tension d'entrée | Angle de faisceau | Dimension | Découper |
| JST-HTA-F | 1W | >80/90 | 2700K-5000K | >0.65 | 0.30UN | AC220-240V | 10°/15°/24°/36° | D35*H45mm | 30mm |
| JST-HTA-F | 3W | >80/90 | 2700K-5000K | >0.90 | 0.60UN | AC220-240V | 10°/15°/24°/36° | D35*H45mm | 30mm |
| JST-HTA-F | 7W | >80/90 | 2700K-5000K | >0.90 | 0.65UN | AC220-240V | 10°/15°/24°/36° | D55*H61mm | 50mm |
| JST-HTA-R | 1W | >80/90 | 2700K-5000K | >0.90 | 0.75UN | AC220-240V | 10°/15°/24°/36° | D35*H45mm | 30mm |
| JST-HTA-R | 3W | >80/90 | 2700K-5000K | >0.90 | 1.00UN | AC220-240V | 10°/15°/24°/36° | D35*H45mm | 30mm |
| JST-HTA-R | 7W | >80/90 | 2700K-5000K | >0.90 | 1.25UN | AC220-240V | 10°/15°/24°/36° | D55*H61mm | 50mm |
Détails de taille
 | |
| 20W/30W/35W | 20W/30W/35W |
Avantages
1. Mourir- Dissipateur thermique en fonte d'aluminium pour répondre au prix économique.
2. Non- le feuilletage crée un bon environnement lumineux.
3. Glare- fee design, spot lumineux parfait avec une diffusion précise.
4. Clips réglables, facile à installer.
5. IP20
6. Durée de vie de 50 000 heures
Installation
• Quick, sûr et facile à installer.
• Perfect for new and remodel construction.
• Faible- le profil est idéal pour les installations peu profondes.
• Rated for indoor use.
Applications
Hotels , Villas ,Cludes ,Cinemas ,Offices ,resturants,Fashion stores,Stations,Shopping malls,Supermarkets etc.
Conçu pour l'éclairage d'accentuation, éclairage de travail et éclairage général dans le résidentiel, commercial, pédagogique, vente au détail, hospitalité, et environnements de soins de santé.
Les rendements lumineux élevés prennent en charge- applications au plafond.
Idéal pour les plénums peu profonds ou restreints.
