Product Data
Manufacturer: JARSTAR Lighting.
Return Policy: Assembled to Order. أ 50% Restocking Fee May Apply.
Voltage: AV100- 277V, AC200- 240V.
Finish: White, Black, Silver, Custom RAL (Extended Lead Time May Apply).
Color Temperature: 2700K Warm White, 3000K Soft White, 4000K Day White, 5000K Cool White.
Driver: On/Off is standard. Other dimming drivers are available for an additional charge.
CRI: 80 is standard. 90/ 95 is an available option.
Mount Type: Pendant/ Surface mounted.
Product Type: Direct/ Indirect.
Lumen Output: Over 100lm/w, 110lm/w, 120lm/w, 130lm/w.
Product Performance
Jarstar develops luminaires with the specifications of good glare control and high visual comfort. UGR values are used as support for purely norm-referenced lighting. With downlights though this should not be carried out using ‘blanket’ values, but should be implemented according to the individual arrangement of luminaires in the room.
The specification grade Continuum 20 Architectural Direct and Indirect LED Linear Pendant Lighting delivers continuous clean lines and clear light to commercial, hospitality and residential interior lighting applications. Our modern, slim profiles and stylish linear chandelier designs offer excellent direct and indirect lighting, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, المطاعم, and more. The Continuum integrated LED linear pendant lighting is available 600mm, 900مم,1200مم,1500mm and customized.
مواد

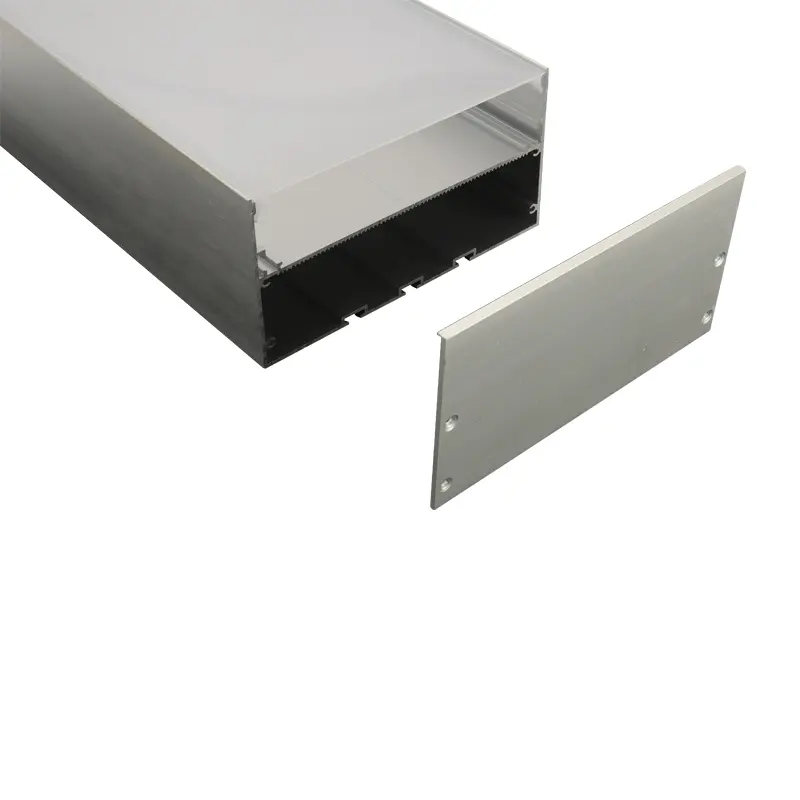

Luminaire body is made of extruded aluminium finished in Anodized aluminum. Luminaire adds in a optical system based on PC lenses with a polycarbonate buffer with a beam angle of 90°120°, and UGR<19.
Light Source Information
• Direct light output.
• LED outputs available from ~ 1700 to ~ 6500 lm per meter.
• Low, standard or high output available with efficacy of up to 125 Lumens per Watt.
• 90 colour rendering index.
• Flicker- free for maximum eye comfort.
• Colour Temperature 3000K | 4000ك | 5000ك.
• L70 B50 = 100,000 hours | L90 B50 = 42,000 hours.
• Single bin Samsung LEDs with a ≤ 3 step Macadam ellipse tolerance.
مواصفة
| نموذج | قوة | CRI | CCT | الجبهة الوطنية | حاضِر | جهد الإدخال | زاوية الشعاع | البعد |
| JST-LL-SC70 | 30دبليو | >80/90 | 2700K-5000K | >0.90 | 0.75أ | AC220-240V | 120° | L1200*W35*H70mm |
| JST-LL-SC70 | 30دبليو | >80/90 | 2700K-5000K | >0.90 | 0.75أ | AC220-240V | 120° | L1200*W50*H70mm |
| JST-LL-SC70 | 30دبليو | >80/90 | 2700K-5000K | >0.90 | 0.75أ | AC220-240V | 120° | L1200*W60*H70mm |
| JST-LL-SC70 | 30دبليو | >80/90 | 2700K-5000K | >0.90 | 0.75أ | AC220-240V | 120° | L1200*W75*H75mm |
| JST-LL-SC70 | 30دبليو | >80/90 | 2700K-5000K | >0.90 | 0.75أ | AC220-240V | 120° | L1200*W80*H70mm |
| JST-LL-SC70 | 30دبليو | >80/90 | 2700K-5000K | >0.90 | 0.75أ | AC220-240V | 120° | L1200*W100*H70mm |
| JST-LL-SC70 | 30دبليو | >80/90 | 2700K-5000K | >0.90 | 0.75أ | AC220-240V | 120° | L1200*W120*H70mm |
| JST-LL-SC70 | 30دبليو | >80/90 | 2700K-5000K | >0.90 | 0.75أ | AC220-240V | 120° | L1200*W150*H70mm |
تفاصيل الحجم
 |  |  |  |
| 35مم | 50مم | 60مم | 75مم |
 |  |  |  |
| 80مم | 100مم | 120مم | 150مم |
المزايا
1. Die- cast aluminium heatsink to meet economic price.
2. Non- flicking make good light environment.
3. Glare- fee design,perfect light spot with precise cast.
4. Adjustable clips,easy to installation.
5. IP20.
6. Length can be 600mm/ 900mm/ 1200mm/ 1500mm/ 3000mm.
7. Life span for 50,000hrs.
التطبيقات
Jewelry stores, museums, mood lighting, banks, airport supermarket and etc.
