Product Data
Light Source Information
• Direct light output.
• Low, standard or high output available with efficacy of up to 125 Lumens per Watt.
• 85/ 90 colour rendering index.
• Flicker- free for maximum eye comfort.
• Colour Temperature 3000K | 4000ك | 5000ك.
• Single bin Samsung LEDs with a ≤3 step Macadam ellipse tolerance.
Product Performance
Design
Aluminium profile
IP20 Rated
IK08 Rated
Recessed
Corner connection
Available in White (RAL9016) as standard, custom RAL available on request
Blank modules available
تثبيت
• Recessed (use 2 clips).
• Can easily be connected into a continuous system.
• Quick and simple power and control connection.
Emergency
• 3hr integrated emergency available
• DALI addressable emergency
Anti- Microbial Protection
• Steritouch powder coating available
To specify state:

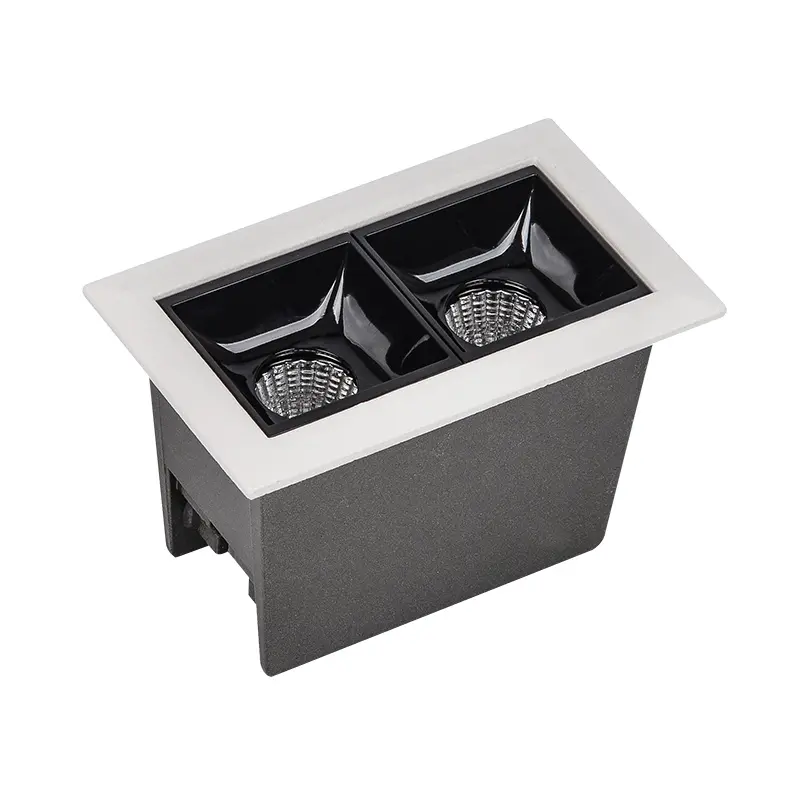

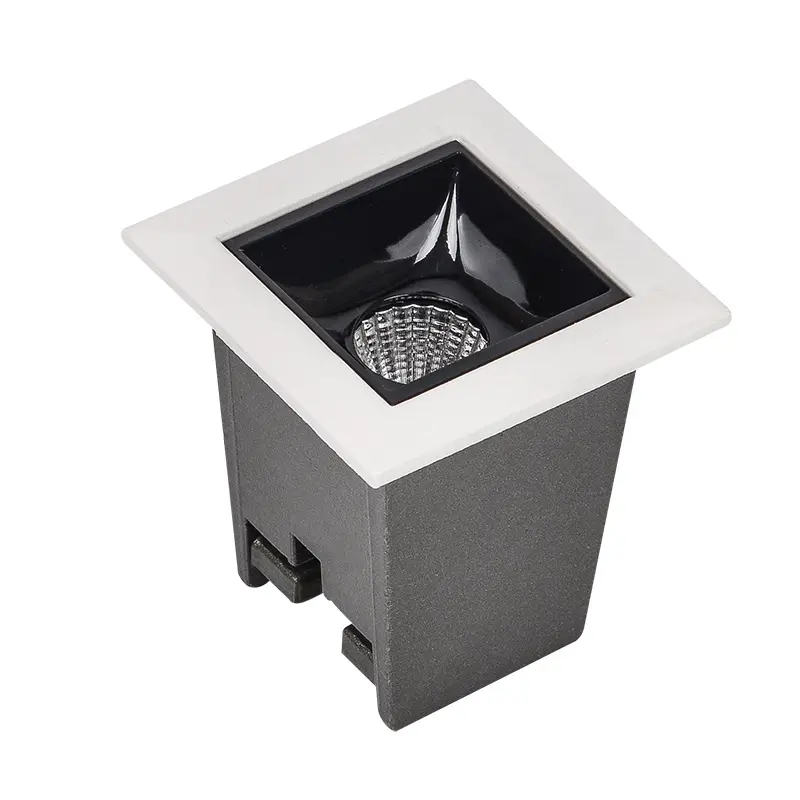

Modular linear recessed LED system for continuous or stand- alone configuration. Available in a range of colour temperatures and lumen packages, tailored to your specification. Create continuous lines or angles of light.
Controls
• CASAMBI
• CP Sensor
• Customised solution
Dimming
• Non- dimmable as standard
• DALI dimming/ 0- 10V/ Triac dimming available
Optics
• TP(a) rated round aperture diffuser.
• 15/ 30/ 45 degree beam angle.
• Designed to achieve UGR<19.
Miscellaneous
• 5 year warranty
مواصفة
| نموذج | قوة | CRI | CCT | الجبهة الوطنية | حاضِر | جهد الإدخال | زاوية الشعاع | البعد | انقطاع |
| JST- LL- AC | 2دبليو | >80/ 90 | 2700ك- 5000ك | >0.65 | 0.05أ | AC220- 240V | 15°/ 30°/ 45° | L45*W45*H49mm | L37*W37mm |
| JST- LL- AC | 4دبليو | >80/ 90 | 2700ك- 5000ك | >0.65 | 0.60أ | AC220- 240V | 15°/ 30°/ 45° | L75*W45*H49mm | L68*W37mm |
| JST- LL- AC | 10دبليو | >80/ 90 | 2700ك- 5000ك | >0.65 | 0.60أ | AC220- 240V | 15°/ 30°/ 45° | L147*W45*H49mm | L140*W37mm |
| JST- LL- AC | 20دبليو | >80/ 90 | 2700ك- 5000ك | >0.90 | 0.60أ | AC220- 240V | 15°/ 30°/ 45° | L280*W45*H49mm | L273*W37mm |
| JST- LL- AC | 30دبليو | >80/ 90 | 2700ك- 5000ك | >0.90 | 0.60أ | AC220- 240V | 15°/ 30°/ 45° | L412.7*W45*4H9mm | L405*W37mm |
تفاصيل الحجم
 |  |  |  |  |
| 2دبليو | 4دبليو | 10دبليو | 20دبليو | 30دبليو |
المزايا
1. Die- cast aluminium heatsink to meet economic price.
2. Non- flicking make good light environment.
3. Glare-fee design, perfect light spot with precise cast.
4. Adjustable clips, easy to installation.
5. IP20.
6. Life span for 50,000hrs.
تثبيت
سريع, آمنة وسهلة التركيب.
مثالية للبناء الجديد وإعادة التشكيل.
Low- profile is ideal for shallow installations.
مُصنف للاستخدام الداخلي.
تمت الموافقة عليه للمواقع الرطبة.
عكس الضوء, متوافق مع معظم المخفتات.
تصنيف IC.
التطبيقات
Designed for accent lighting, task lighting and general illumination in residential, commercial, educational, retail, hospitality, and healthcare environments.
High lumen outputs support high- ceiling applications.
Ideal for shallow or restricted plenum.
